TANK LEVEL MONITORING PROBE

The Sensor incorporates a loop powered solid state differential pressure sensor which measures the level of liquid in your tank & provides a 4-20ma output proportional to tank height. 316 stainless steel housing 38mm dia. Sensor powered from +10 to 36 v dc that is supplied from the Instrument. Plug in terminal on top for 2 core shielded cable to display. Sensor can be top or bottom mounted. ½” BSP t(m) mounting thread. Suitable for Fuel, Fresh, Grey, Blackwater & Lube Oil etc. Suitable for tanks, up to a depth of 3,000mm. Sensor is custom built to your tank depth and supplied calibrated ready to screw in.

Bottom and Top Mounted options available

LED BAR GRAPH MODULES

BG98 Replacement

Four fuel gauge sticks labeled PORT FUEL, STBD FUEL, FRESH WATER, and BLACK WATER, each with levels marked in quarter increments. All gauges show the same level at around 1/4 full, with the Black Water gauge showing a small red section indicating it is nearly full.

New BG98

OLD BG98

20 LED colour coded bar graph display of Tank Level.

Housed in compact flush mount modules 160×80mm.
Modules for Fuel, Fresh, Grey, Blackwater, Oil tanks etc.

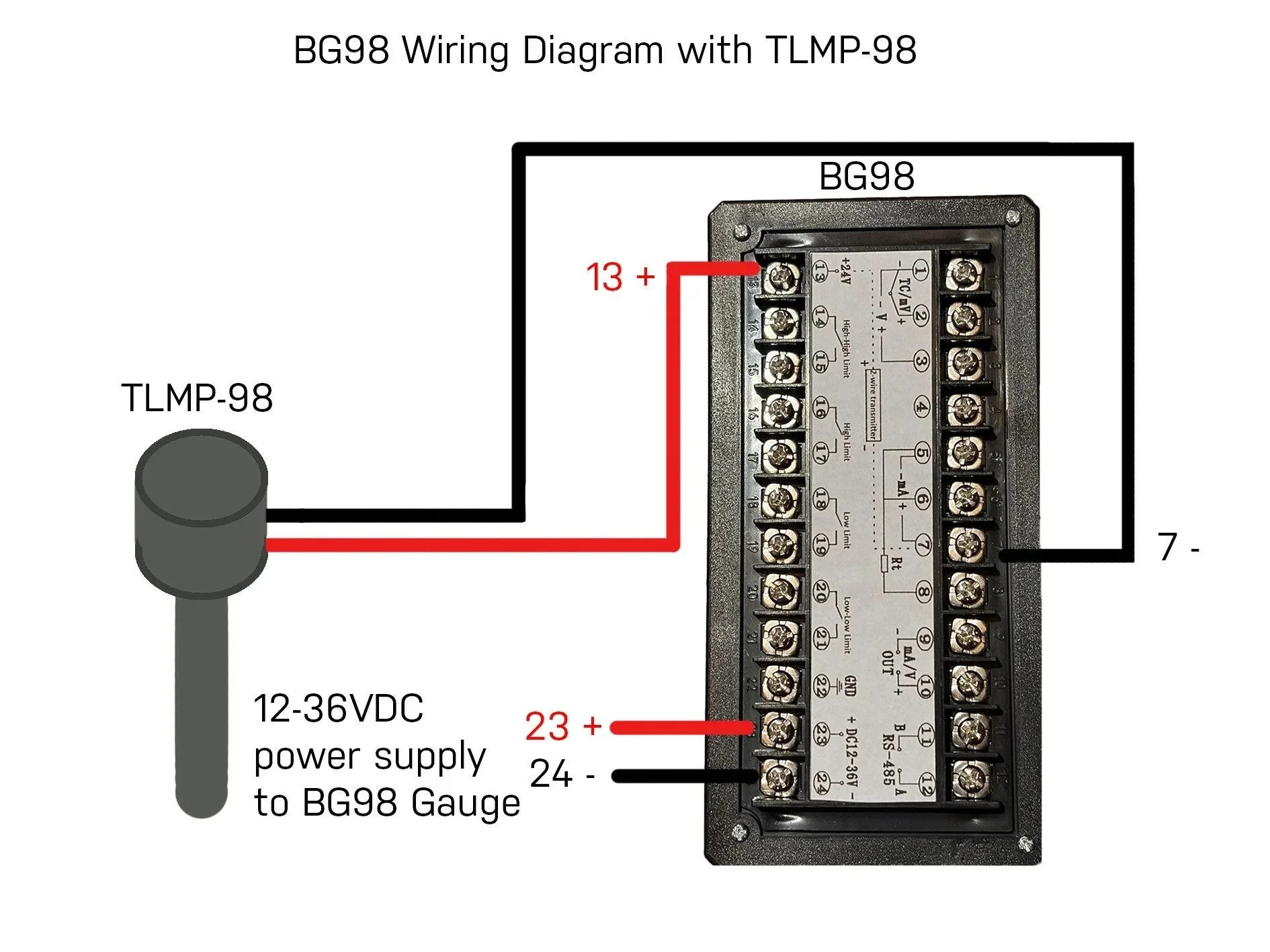

Simple to install with terminals on rear for connection to power (12 or 24 vdc and 240Vac) & TLMP-98 Tank Level Monitoring Probe.
